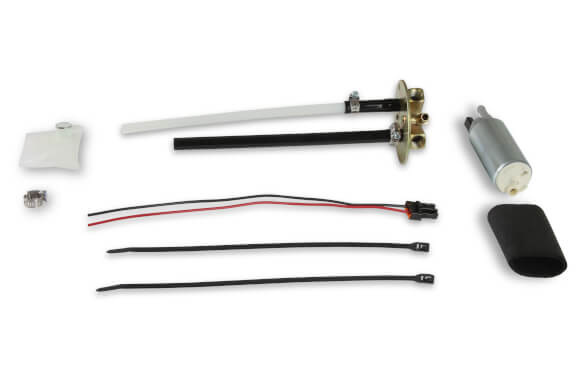

Holley and Sniper will help you to complete your EFI swap with our new EFI Conversion Fuel Tanks. Each tank is a direct fit for your application-no modifications necessary. The kit includes the tank, a 255 lph fuel pump, internal baffling, and a fuel level sender. The tank is powder coated for corrosion resistance and great looks. These tank kits are a complete solution for your EFI project!

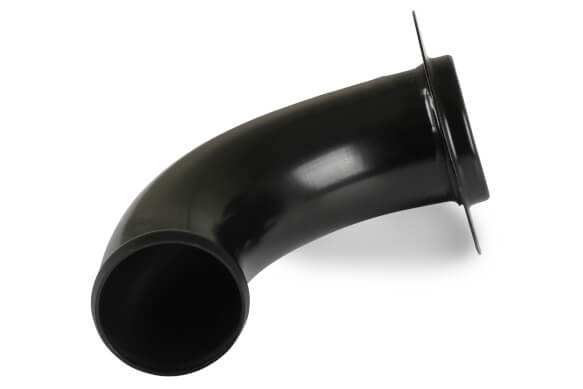

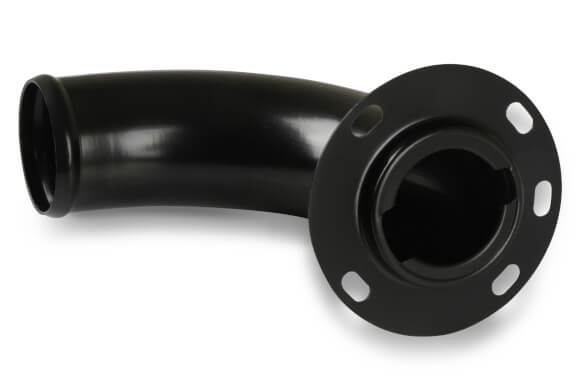

***Steel filler neck that extends to rear valance included.
***These tanks are perfect for your next classic truck EFI conversion project as well.
Supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw)
Size: 32-3/4" x 24-1/2" x 7-1/2"
For a better seal use Permatex Indian
Head Gasket Shellac Compound or
Aviation Form-A-Gasket sealant on the
gasket and screws.
- Length: 46"
- Width: 32"
- Height: 10"
When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.
FEATURES

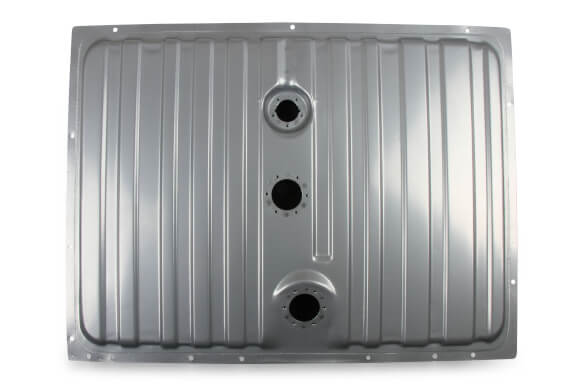

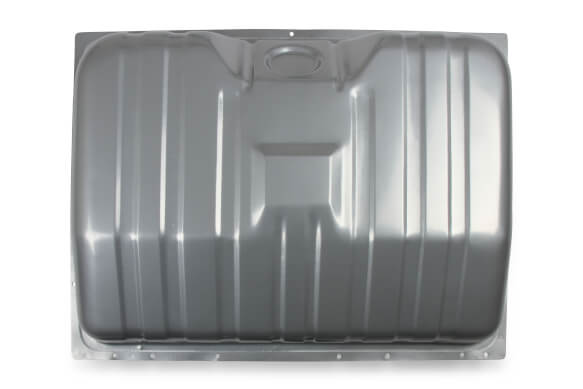

- Tanks are coated galvanized steel then powder coated silver for total corrosion protection

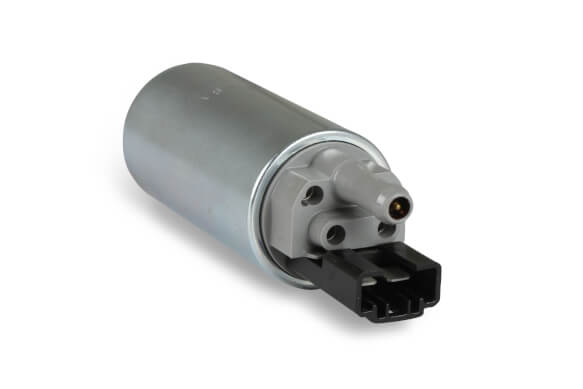

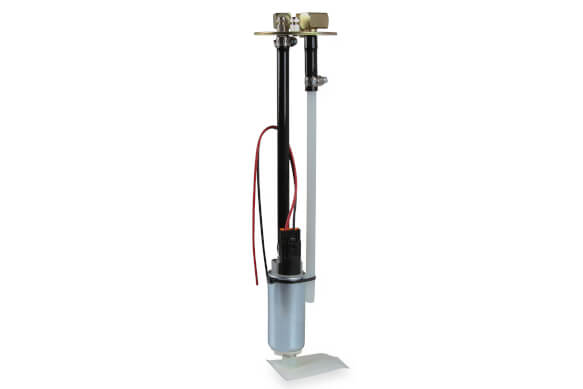

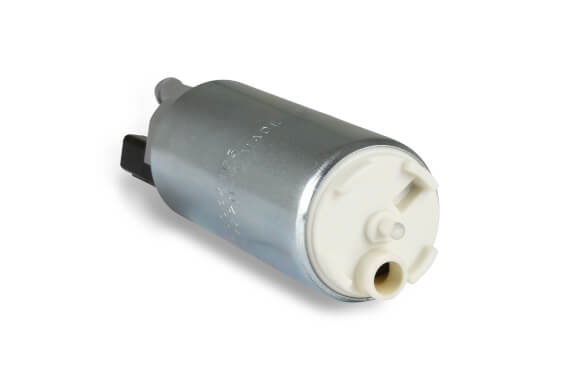

- 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness

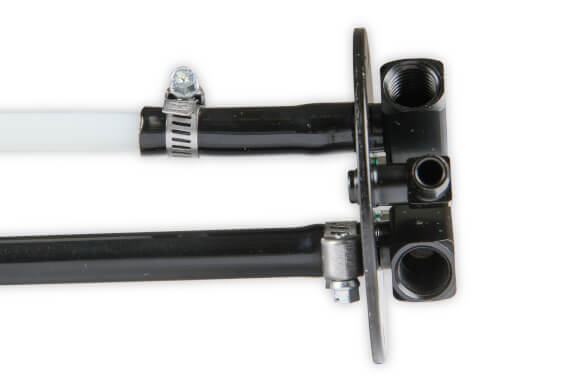

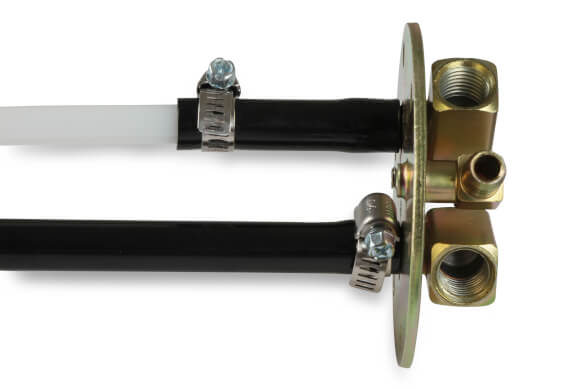

- Sender has ¼†NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting
- Fuel level sender included with the correct Ohm range for your factory gauges
- Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car
- EFI style tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation
- Fits and looks like an OE tank when installed
- Complete bolt in solution for your EFI conversion
