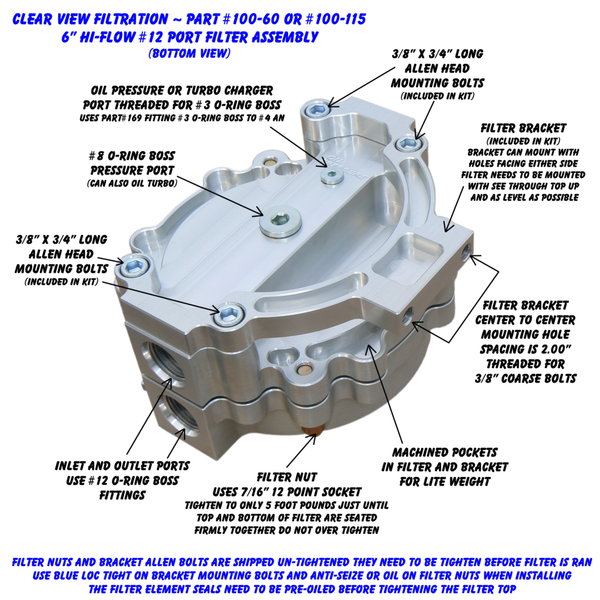

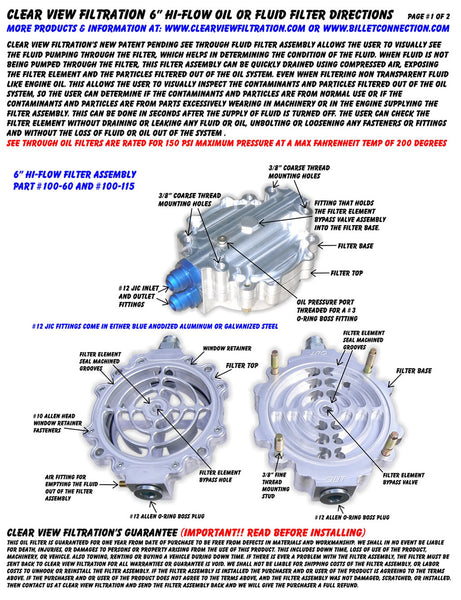

6″ Hi-Flow See Through Filter Assembly with #12 Ports and 60 Micron Element, for running 50 weight or lighter oil. For Supercharged Hemi’s, Pro Mod and Extreme Engine combinations pushing high volumes of oil.
-
Smallest Particles Filtered: 60 Microns
-
Bypass Relief Valve: Yes
-
Inlet & Outlet Fitting: #12 O-Ring Boss – 1 1/16” – 12 TPI
-
Operating Temp: max 220 degrees Fahrenheit
-
Operating Pressure: max 150 PSI
-
Height: 3.250 in.
-
Width: 6.750 in.
-
Length: 7.750 in.
-
Filter Weight: 5.75 pounds
-
Sold as Kit including; Filter Assembly,
60 Micron Element, and Bracket Kit

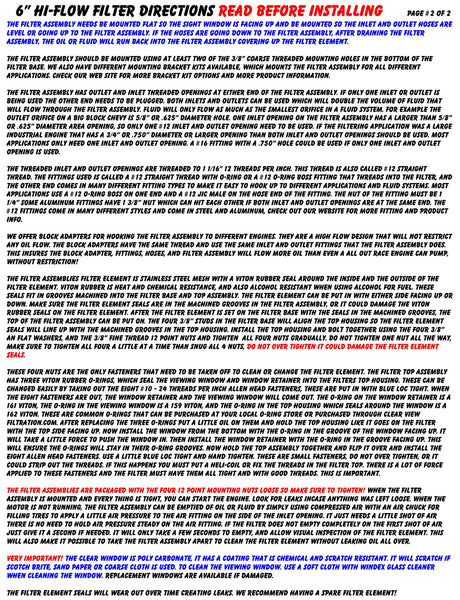

(**WARNING Filter Nuts and Bracket bolts are shipped
un-tightened they need to be tighten before filter is used.**) -
Recommended: Extra Filter Element Part # 110-60
-
Suggested Replacement Parts:
~Window Part # 105-480
~O-Ring Kit Part # 120
~Filter Stud Kit (set of 2) Part # 135
~Air Fitting Part # 148
~Oil Pressure Port Fitting Part # 169
~Block Adapters also available
