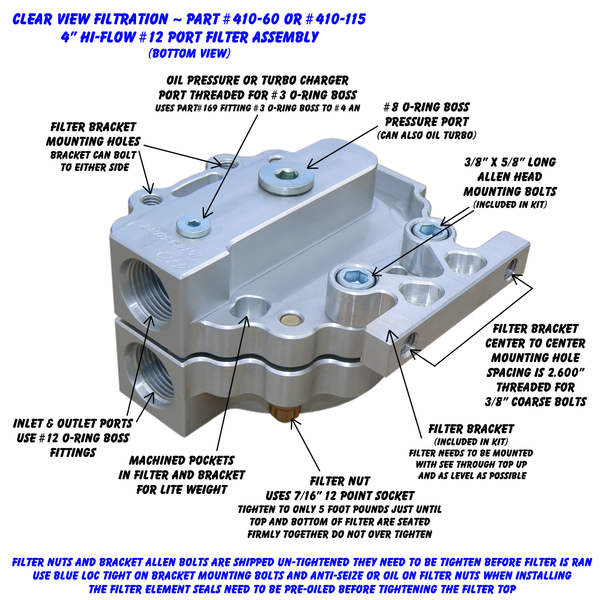

4″ Hi-Flow See Through Filter Assembly with #12 Ports and 60 Micron Element, for running 50 weight or lighter oil. Recommended for Big and Small Blocks where the user does not want to run a disposable filter. Filter works where space is limited and being light weight is ideal.
-
Smallest Particles Filtered: 60 Microns
-
Bypass Relief Valve: Yes
-
Inlet & Outlet Fitting: #12 O-Ring Boss – 1 1/16” – 12 TPI
-
Operating Temp: max 220 degrees Fahrenheit
-
Operating Pressure: max 150 PSI
-
Height: 3.00 in.
-
Width: 5.00 in.
-
Length: 6.00 in.
-
Filter Weight: 3.50 pounds
-
Sold as Kit including; Filter Assembly,
60 Micron Element, and Bracket Kit
(**WARNING Filter Nuts and Bracket bolts are shipped
un-tightened they need to be tighten before filter is used.**) -
Recommended: Extra Filter Element Part # 435-60
-
Suggested Replacement Parts:
~Window Part # 412-480
~O-Ring Kit Part # 425
~Filter Stud Kit (set of 2) Part # 135
~Air Fitting Part # 148
~Oil Pressure Port Fitting Part # 169
~Block Adapters also available
