SMART SENSOR HUB

SMART SENSOR HUB

Part #: 990010-001

Brand: MAD Racing Parts

$419.00

Shipping calculated at checkout.

Our smart sensor hub features 12 individual overload protected 5 volt and 12 volt channels in a compact lightweight package. The internal regulated power supply means you are not dependent on your ECU to power sensors.

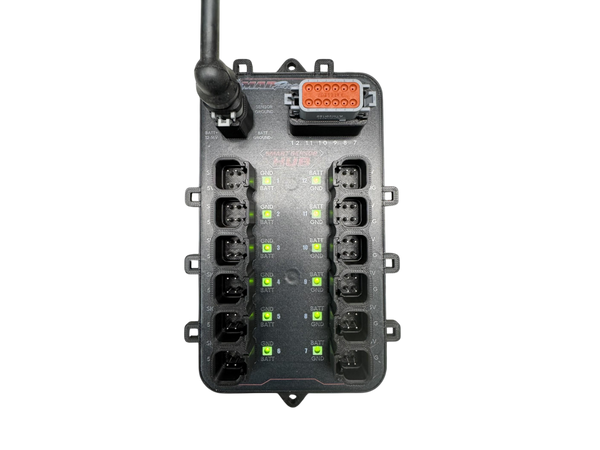

This means that should a sensor fail or a wire become shorted, only thet single channel is taken offline. the remaining 11 channels will continue to function normally. Each channel also features an indicator light. Normal operation will have a green light and any faults will cause the light to turn red.

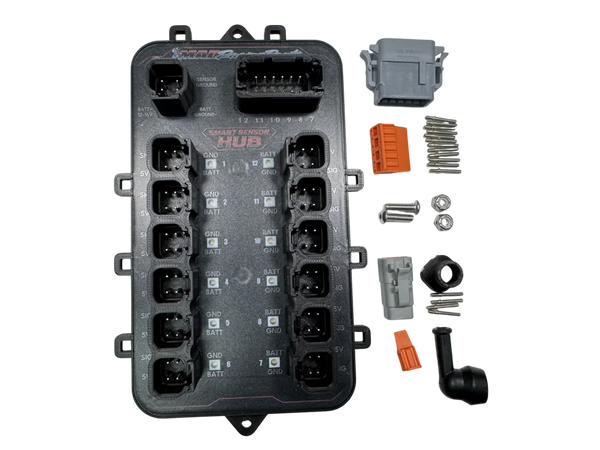

Note- The Smart Sensor Hub ships with ONE 12pin ATM connector kit and ONE 4pin ATM connector kit as shown in the photos.  You will still need a 4pin ATM/DTM connector for each sensor you intend to plug into the hub. Or purchase our 12-pack connector kit above to save a few bucks.

Overall size- 4" wide by 7" high

Weight- 9oz

Instructions Click Here-

https://cdn.shopify.com/s/files/1/0075/4679/8177/files/MAD_Smart_Hub.pdf?v=1779535407



Part #: 990010-001

    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    J
    J2M RaceCars
    Excellent Product and a Must-Have for Any Race Car

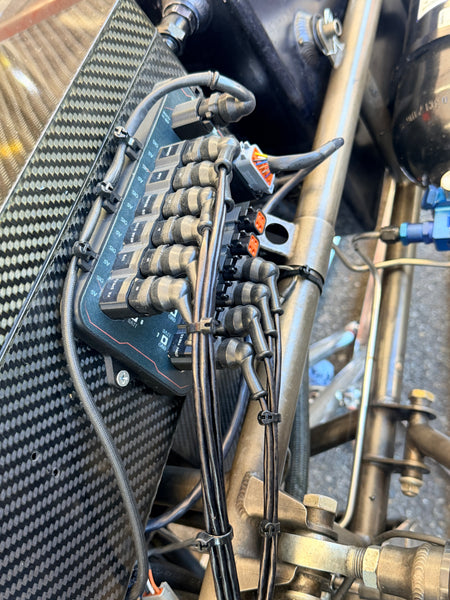

    As a chassis builder and race car wiring installer, I can honestly say this is one of those products that every serious build should have. The Smart Sensor Hub keeps sensor wiring organized, simplifies troubleshooting, and adds an extra layer of protection by isolating sensor circuits from one another.

    The build quality is outstanding, installation is straightforward, and it makes for a much cleaner wiring job overall. In today's data-driven race cars, reliable sensor information is critical, and this hub helps ensure that a single wiring or sensor issue doesn't create bigger problems.

    We've already started incorporating these into our builds at J2M Race Cars and plan to continue doing so moving forward. Highly recommended for anyone running any serious race car electronics package.
