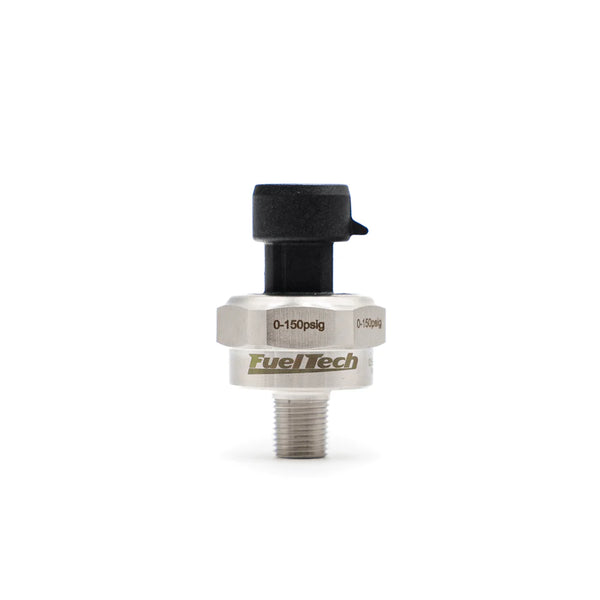

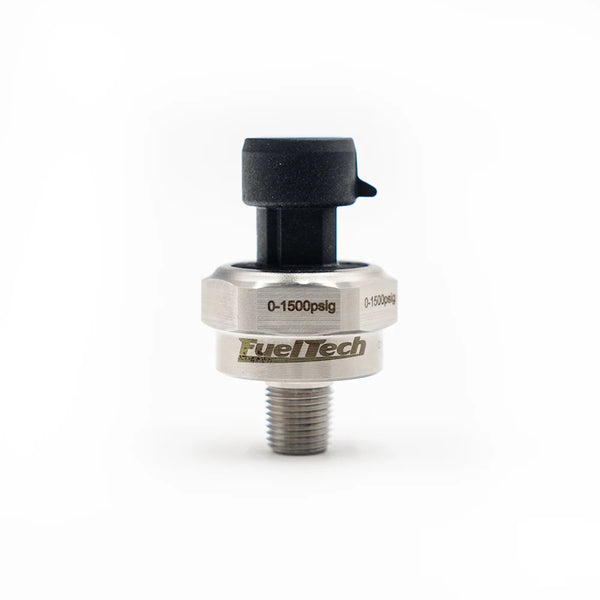

TECHNICAL DESCRIPTION
- Output: 0.5-4.5V
- Supply: 5V
- Thread size: 1/8" NPT
- Height: 45.5 mm (52.8 mm for 0-30 PSI)
- Hex Diameter: 27 mm
- Material: Stainless steel
- Ranges: PS30, PS150, PS300, PS500, PS1500

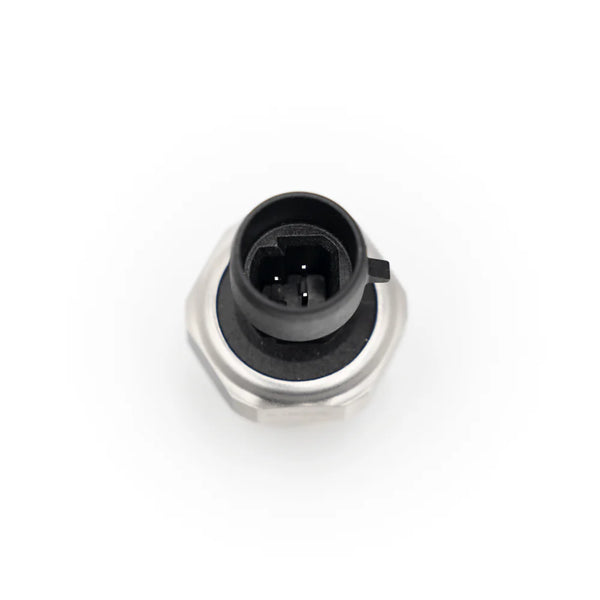

Connector Pinout:
- A - Ground
- B - 5V
- C - Signal
SPECS
Accuracy: ±1.0% span
Stability: ≤±0.25% of span/year
Compensated Temp: -58°F to +257°F (-40°C to +125°C)
Operating Temp: -40°F to +257°F (-40°C to +125°C)
Zero Tolerance: 0.5% of span
Span Tolerance: 0.5% of span
Response Time: < 5ms
Warm-up Time: < 20ms
Fatigue Life: 50M Cycles
Wetted Parts: 17-4 PH Stainless Steel
Enclosure: IP67 (IP65 for electrical code G)
Vibration: Random vibration (20 g) RMS; 20-2000 hz per IEC 60068-64
Shock: 100 gs, 6ms
Approvals: CE, conforms to European Pressure Directive, Fully RoHS compliant, UL recognized files #E219842 & E174228
Part #: 5005100588
