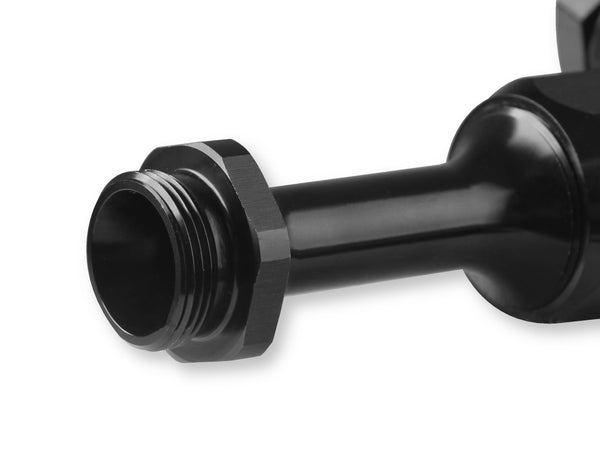

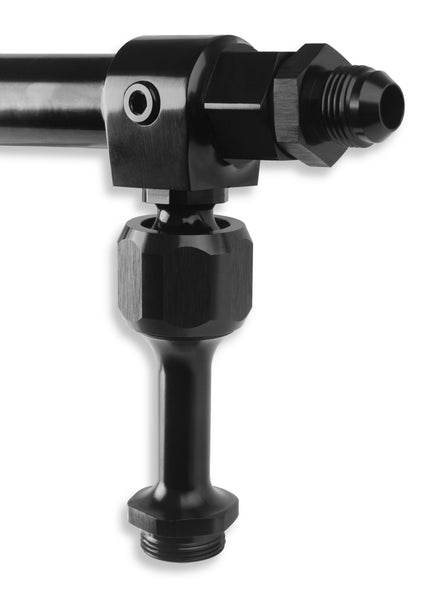

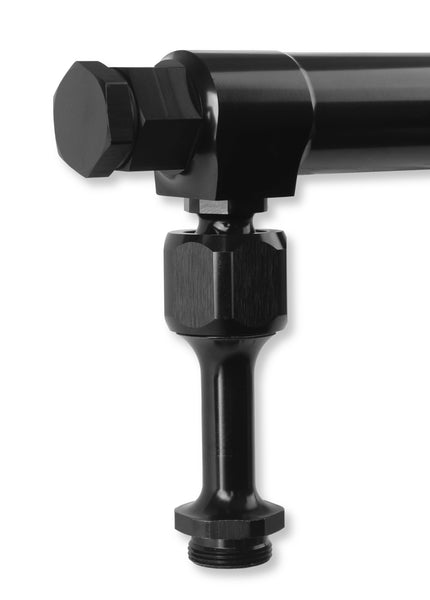

Earl's adjustable fuel log is designed for use with most dual inlet Holley carburetors w/ 7/8"-20 threads on the fuel bowls. The bowl extension adapters pivot at the fuel log end and this provides extra clearance & easier assembly. Includes fuel rail assembly w/ -8 AN Male Flare Inlet adapter, -10 AN O-ring plug, (2) 1/8" NPT Plugs, and sealing washers for the fuel bowls. Black anodized finish.
Part #: AT105008ERL
- Length: 18"
- Width: 7"
- Height: 2.5"
- Emissions Code: No
- Prop 65: No
FEATURES
- Adjustable Billet Aluminum Fuel Log – 8-1/2†to 11-3/4†Length c/l to c/l
- Fits Most Holley Dual Inlet Carburetors w/ 7/8â€-20 threads on Fuel Bowls
- Swivel Extensions – Allow Adjustment & Easier Assembly
- Adjustable Length Fits All Dual Inlet Holley Carburetors (up to 4500 Series)
- Fuel Log Inlets & Outlets: -10 AN O-Ring Female on Each End of Fuel Log
- Fuel Inlet Fitting: -8 AN Male to -10 AN O-Ring Port
- Fuel Log Outlet: -10 O-Ring Port Plug
- Plug Can be Removed for use w/ Return Style Fuel Pressure Regulator

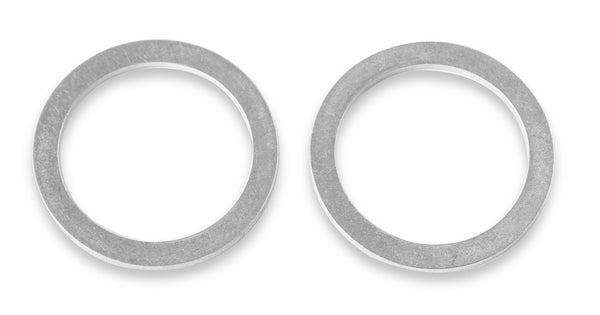

- (2) Sealing Washers for Fuel Bowls
- (2) 1/8†NPT Ports for Fuel Pressure Gauge
- Black Anodized Finish
- Fits Holley 4150, 4160 & 4500 Carburetors
